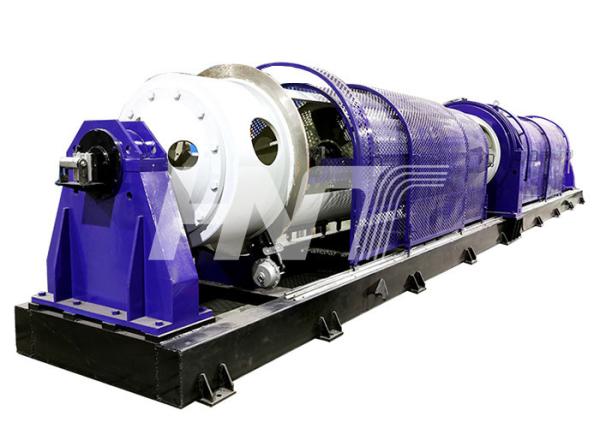

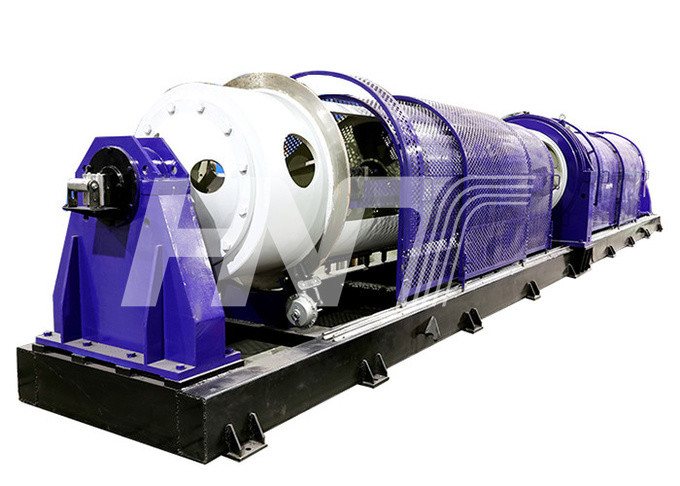

150m/Min Steel Al Copper Wire Tubular Strander Machine Tubular Strander

Place of Origin : Wuxi

Brand Name : HNT

Certification : ISO9001:2008, CE, High-tech enterprise

MOQ : 1 set

Price : negotiable

Packaging Details : according to customer's requirements

Delivery Time : 30-120 days

Payment Terms : T/T, L/C

Application Bobbin : φ500mm & φ 630mm

Finished Dia. : Max. 21mm

Suitable Material : Copper and Al

Line Speed : Max. 150m/min

Largest take-up bobbin : PN1600

Machine central height : 850mm

Contact Now

JLG Tubular Stranding Series

Description

The JLG tubular stranding series is mainly designed for 7 core stranding. This series can be used to strand aluminum conductors, copper conductors, pressed copper conductors and etc.

Technical parameters:

Model	JLG 500	JLG 630
Single wire diameter	Cu: Ø 1.2-5.0 mm Al: Ø 1.5-5.0 mm	Cu: Ø 1.2-5.0 mm Al: Ø 1.5-5.0 mm
Max finish wire diameter	Ø 21 mm	Ø 21 mm
Max rotation speed	500 rpm	500 rpm
Stranding pitch	40-448	40-448
Max line speed	150 m/min	150 m/min
Bobbin specification	PND500	PND630
Capstan wheel	1250 mm	1250 mm
Take-up bobbin	PN1600	PN1600
Height of center	850 mm	850 mm
